Tangxi 4 Channel Multi Network Cable Extender, 3-Pin XLR/DMXin/AES EBU Male and Female to Ether Con, Compatible RJ45 Cat5/Cat6 Ethernet Extender

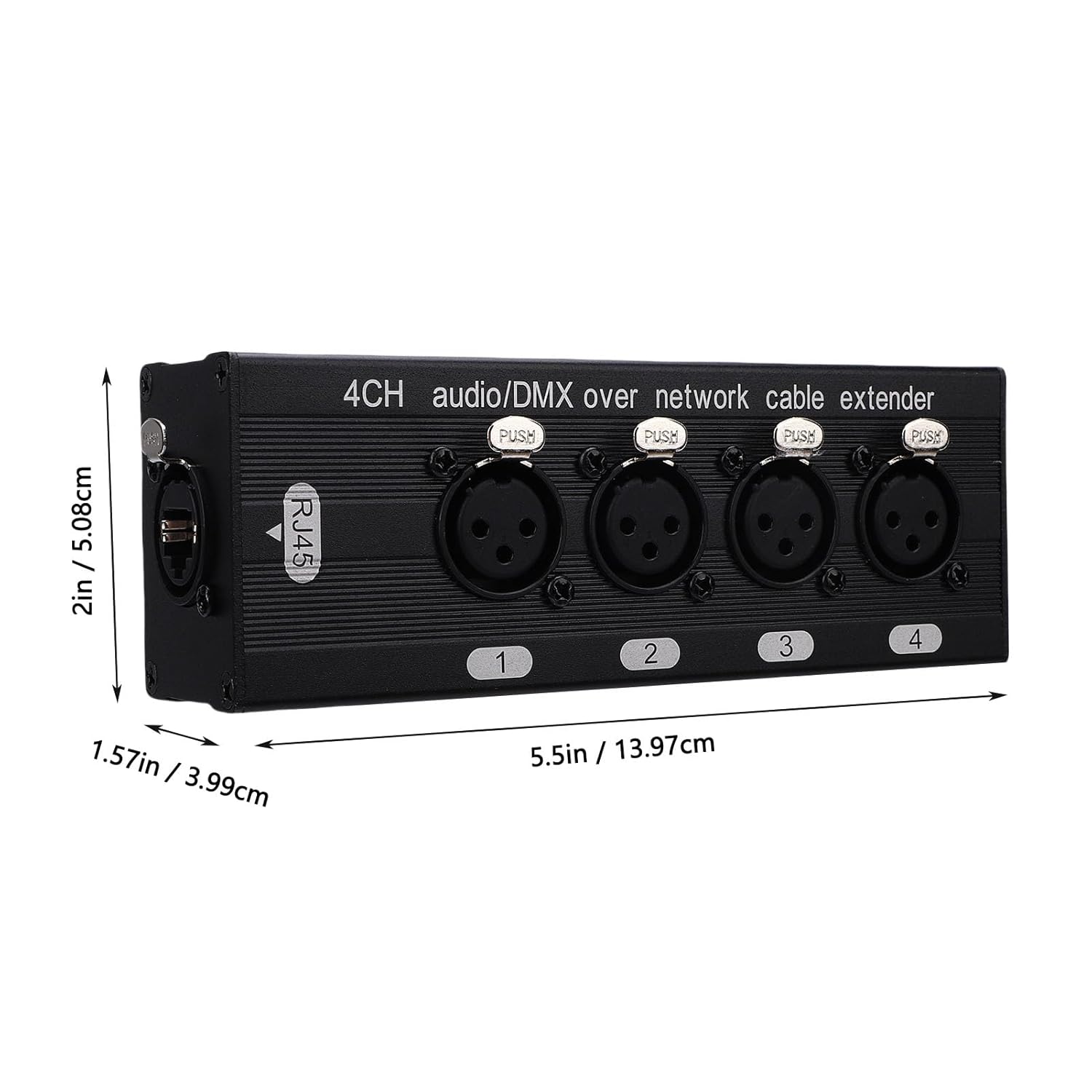

Specification: Item Type: XLR Cable Splitter Box Material: Aluminum Alloy Color: Black Interface Type: XLR Male x 4, XLR Female x 4 (Requires shielded RJ45 connector cable for middle extension, compatible with locking for ETHER CON interface) Connection: 4 Independent Inputs and Outputs Use: For extending mixing consoles, power amplifiers, or microphone interfaces Application: Using this 4 in 4 out extender, extend the four XLR interfaces of the mixing console located at point A to point B on the performance stage without loss. Four interfaces can connect four microphones, and each microphone signal is transmitted independently. Use RJ45 Ethernet cable for connection in the middle, and the connection cable needs to be purchased by the user themselves. How to Use: Remove the product from packaging and it is ready to use packing list: 2 x Multinetwork XLR Cable Splitter Boxes Notice: RJ45 patch cords must comply​ with CAT5A, CAT6, CAT7 standards with shielding, and RJ45 cables must be shielded.

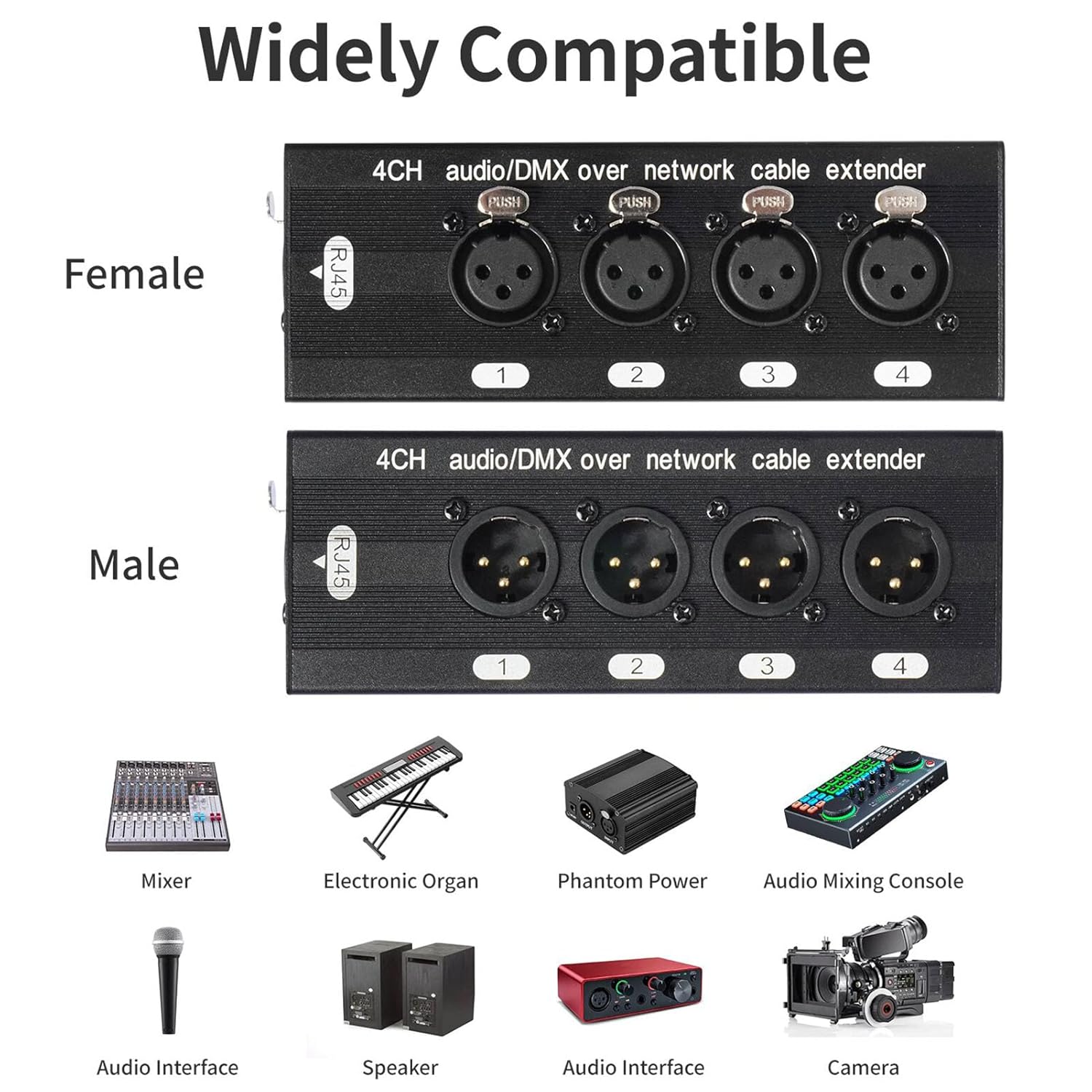

• 4 Channel XLR to Ethernet Adapter: Connect these extender boxes using a single Ethernet cable up to 300 feet to transmit up to 4 channels of XLR sound or 3 pin digital multiplex control signals at stage, studio, DJ venues, and live events.
• Compatible RJ45 Connectors: Each adapter box features for Ether CON compatible RJ45 connectors that securely lock the Ethernet connection, ensuring stable performance at busy concerts and live events without accidental disconnection.
• Single Cable 4 Channel Sound Transfer: Together, these adapters allow you to transmit 4 channels of analog XLR sound via a single RJ45 cable. Easily connect mixers, microphones, and instruments to XLR ports and transfer signals seamlessly.
• Independent Digital Multiplex Control Signals: Connect up to 4 digital multiplex signals via 3 pin XLR ports to control stage lighting, DJ lights, fog machines, and effects. This setup minimizes long distance wiring in control rooms while maximizing lighting control versatility.
• For Microphones And DI Boxes: Use a single Ethernet cable to connect stereo DI boxes and condenser microphone groups to your preamp. The adapters safely transmit 48V phan tom power through compatible RJ45 cables for powered studio or stage equipment.
